Ingress is a renowned security door access system powered by FingerTec with its biometrics and card systems, providing centralized control to your door access and security system. As of late, Ingress has made it possible to pair a monitored door with an IP camera to beef up security of a monitored site. The integration of surveillance system like EpiCamera in door access solution like Ingress will definitely benefit customers, providing coverage where regular door access systems cannot, such as visual proof and real-time surveillance. By having EpiCamera in Ingress, you can monitor the sites in real time through your computer, laptop and your mobile phone, with the recorded visual footages being kept in the cloud server based on your requirements.
|
| |
When pairing the EpiCamera system with Ingress, the latter will automatically prompt the camera to start recording all abnormal events (such as door being forced open) under its Monitoring tab, in which administrators can later access the footages for viewing. The recording can also be exported into various images or video formats such as AVI, MKV, BMP, JPEG, PNG, GIF and TIFF, to suit the customers’ convenience.
|
| |
|
|

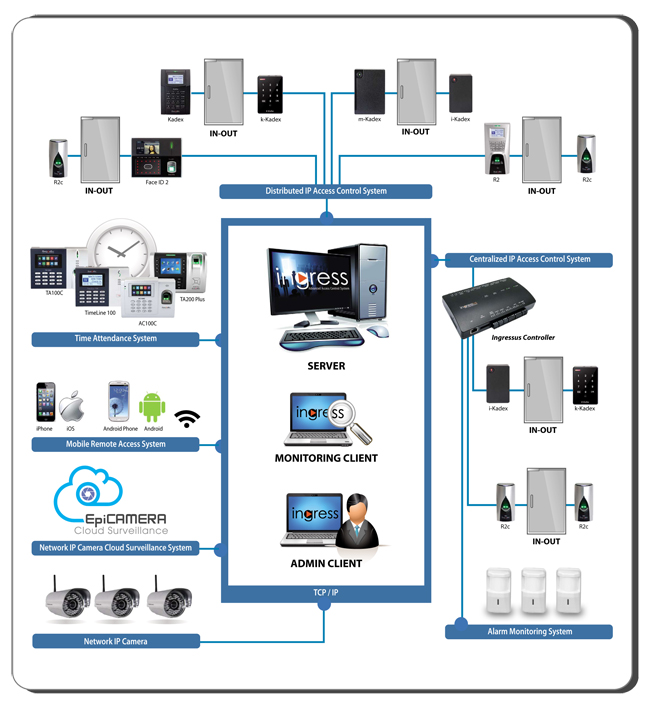

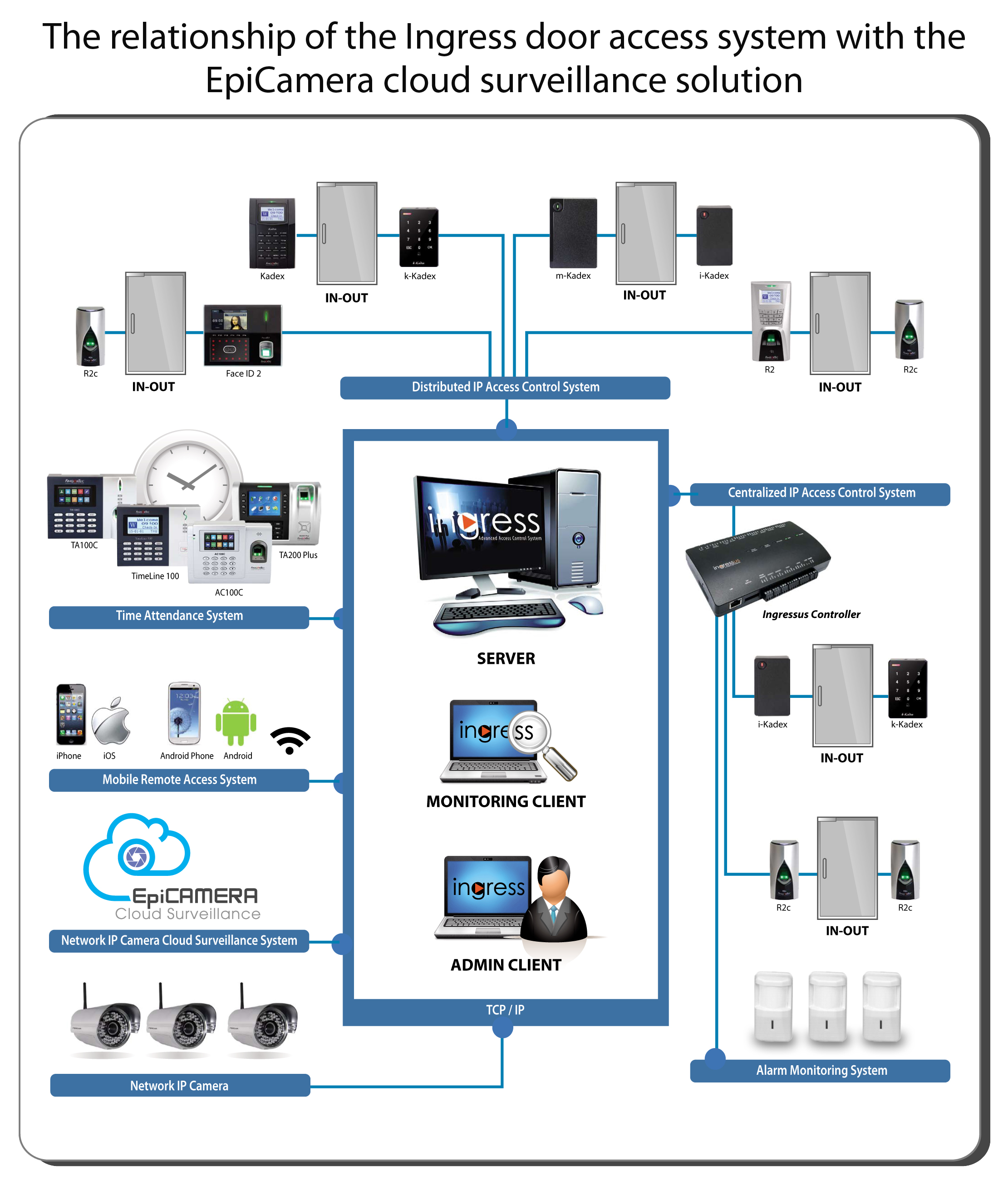

The diagram showing the relationship of the Ingress door access system with the EpiCamera cloud surveillance solution. |
| |
To start using this feature in Ingress, first the you will need to sign up for EpiCamera at www.epicamera.com and connect their IP cameras to EpiCamera. Once this is done, you can build the connection to Ingress.
|
| |

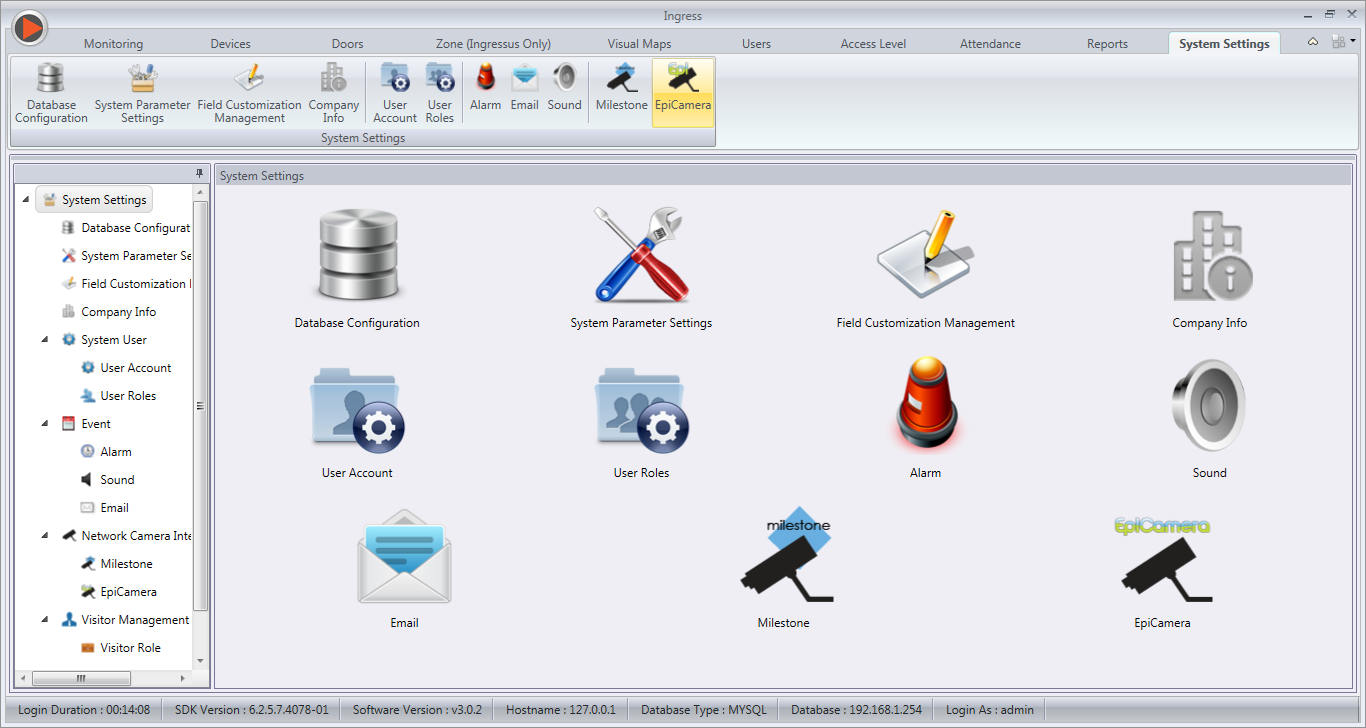

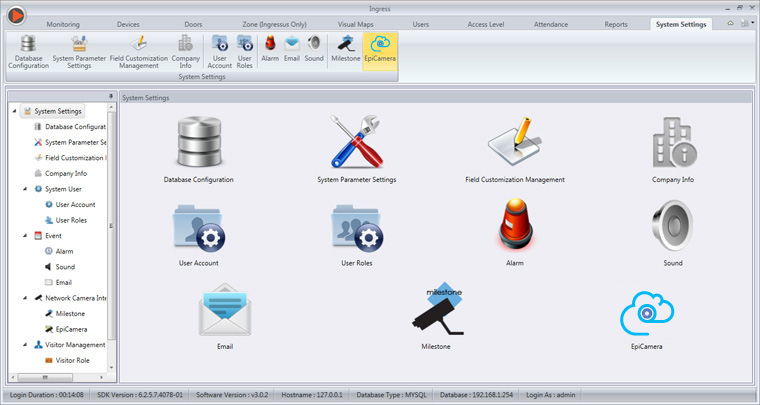

Assuming that you have been using Ingress, the setup for EpiCamera is a breeze. In Ingress, you first need go to the System Settings tab, and click on EpiCamera under Network Camera Integration.
|
| |
|
| |

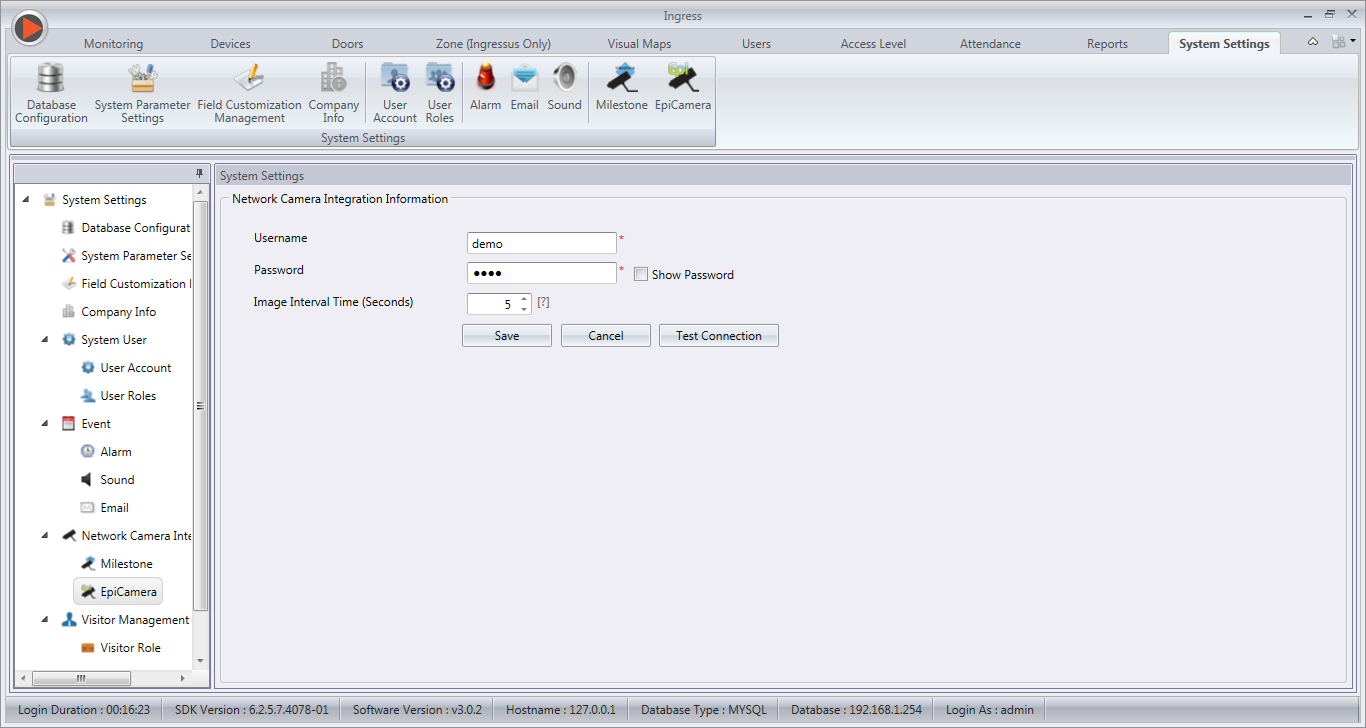

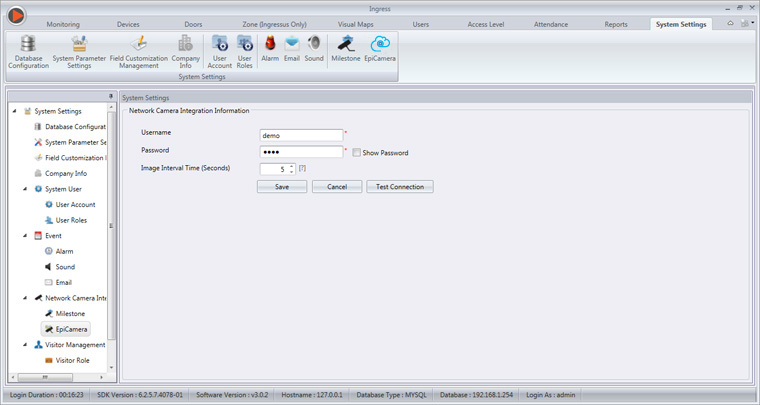

| Next, click ‘Edit’ and fill in the necessary information in the Network Camera Integration Information column. |
| |
|
| |

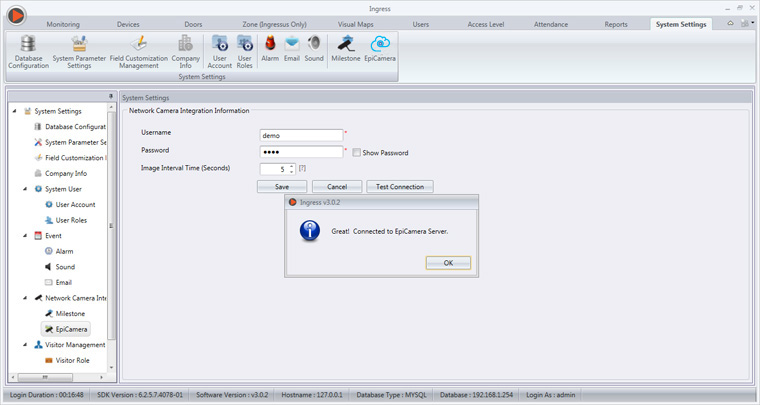

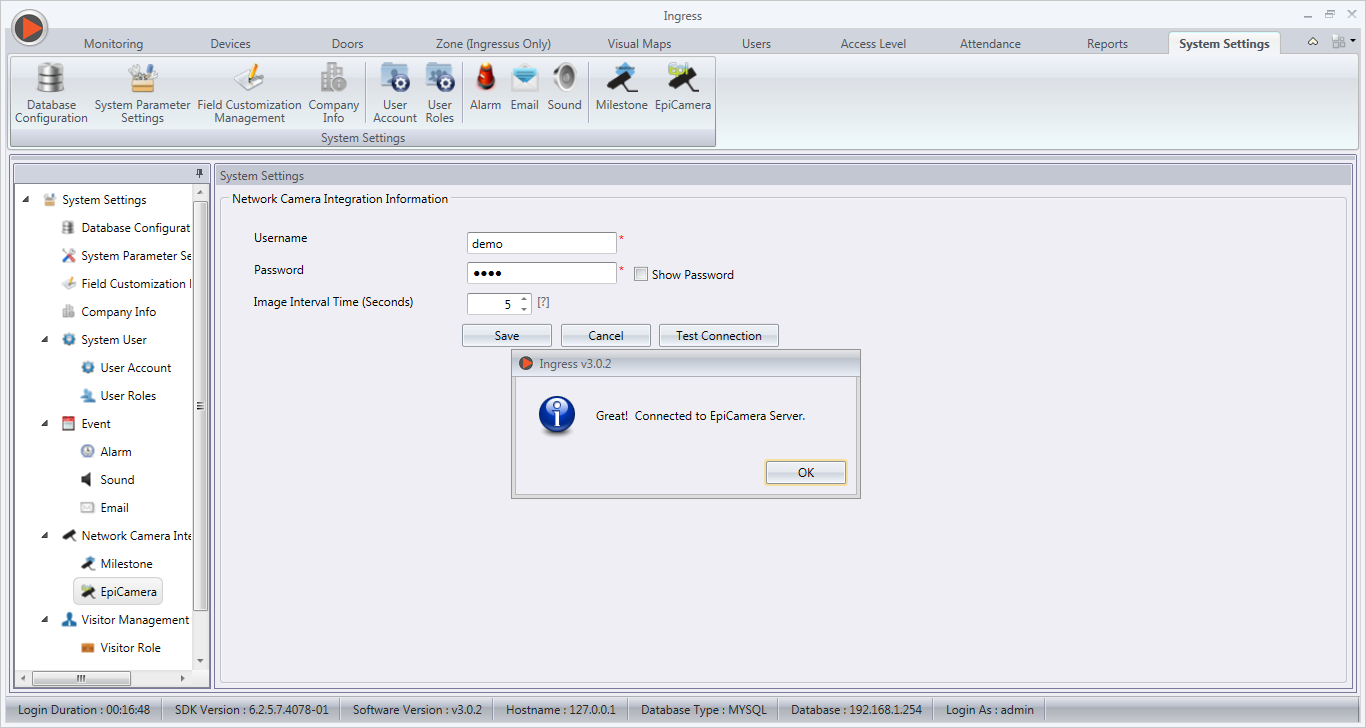

| Then, click ‘Test Connection’ to ensure that the connection is established. Click ‘OK’ when done to save your settings. |
| |
|
| |

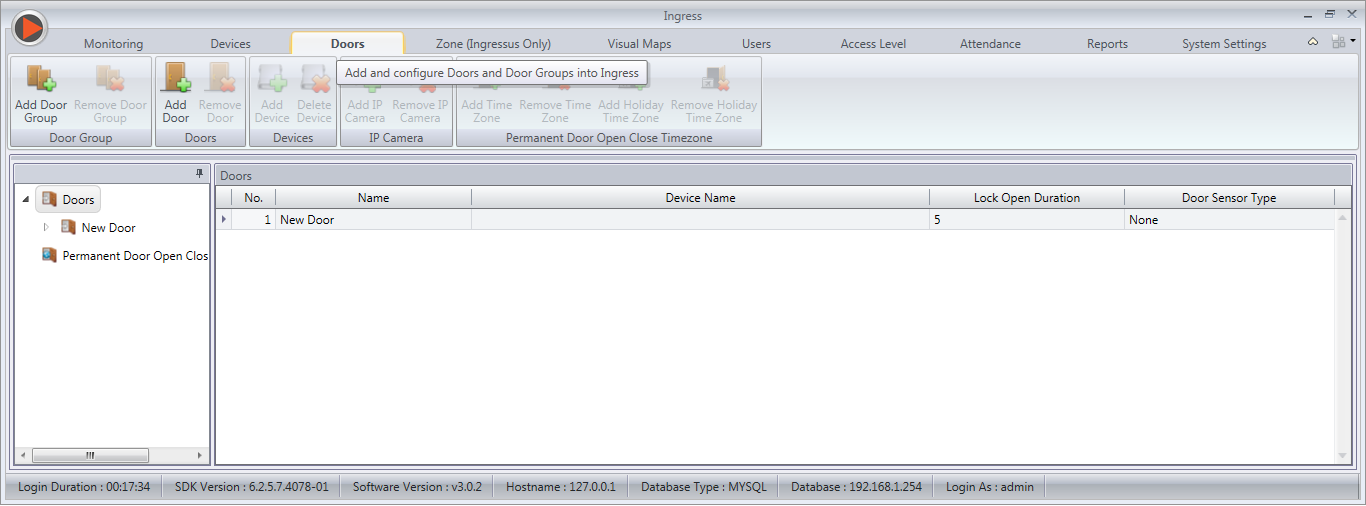

| For the penultimate step, click on the Door tab and click ‘Add Camera’. |
| |
|
| |

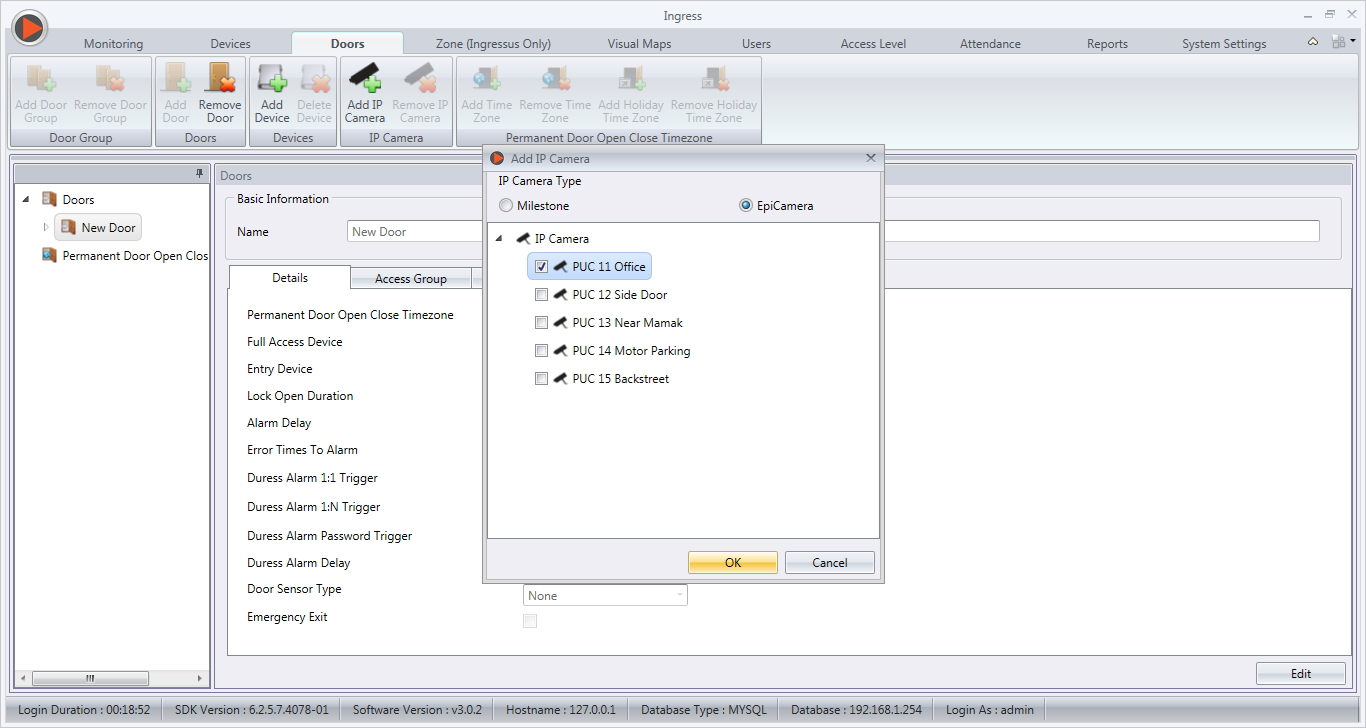

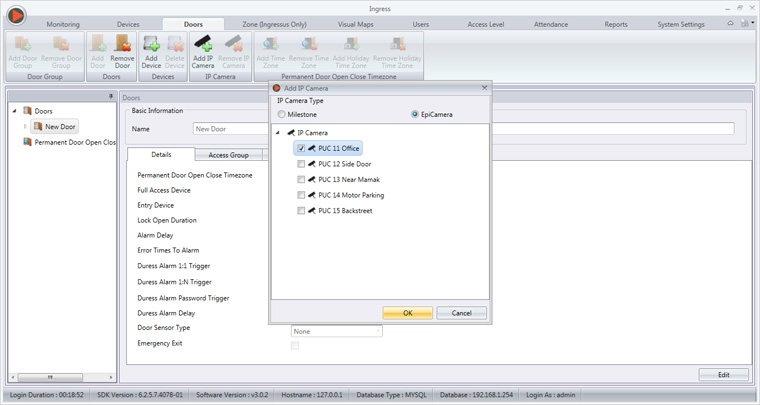

| Finally, when prompted with the Add Camera window, select EpiCamera and choose the IP cam that was previously added. |
| |
|
| |

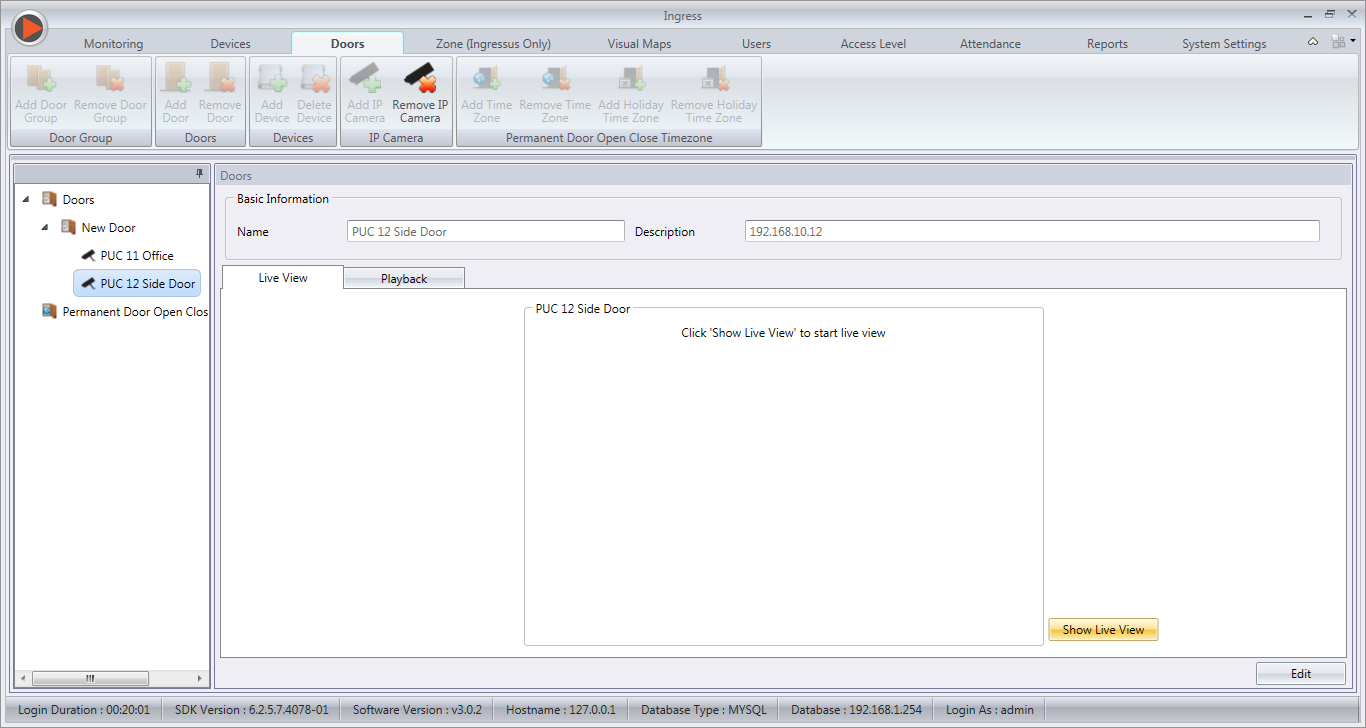

| The IP cam will then be displayed at the left panel under its paired door. |
| |
|
| |

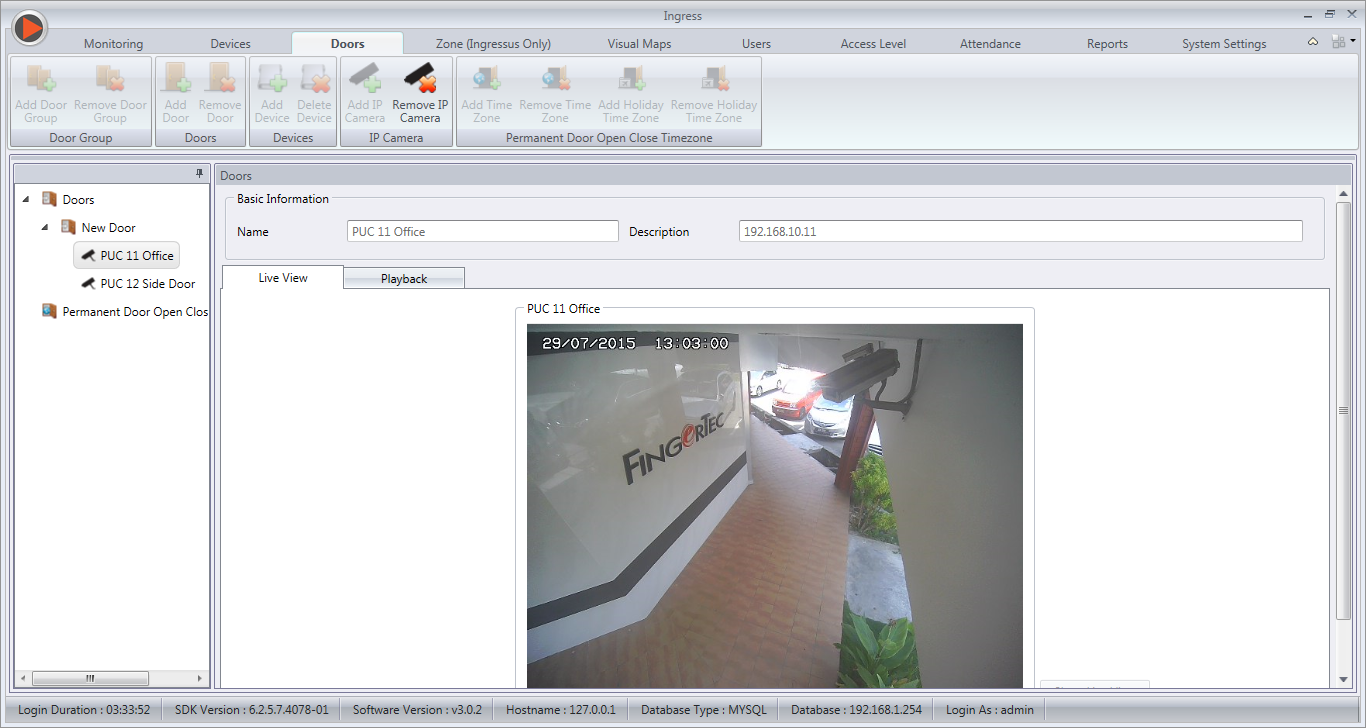

| You can now view real-time footage from the IP cam simply by selecting it and clicking ‘Show Live View’, while abnormal activities will automatically be recorded under the Monitoring tab. |
| |
|
| |
|
|
| |
|
| |
|
|
|
| |
